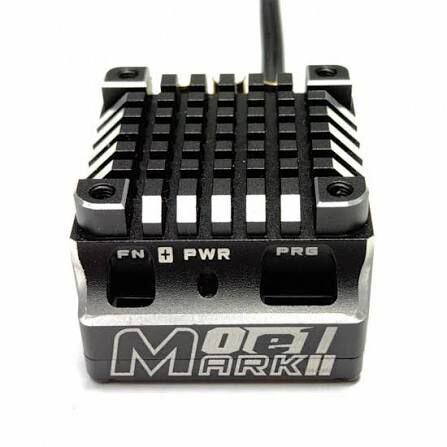

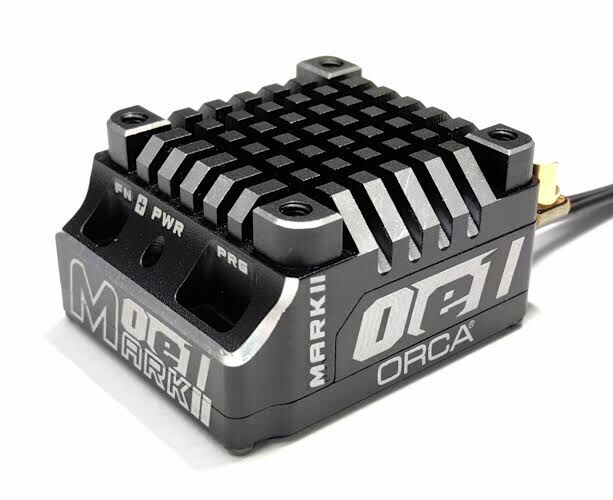

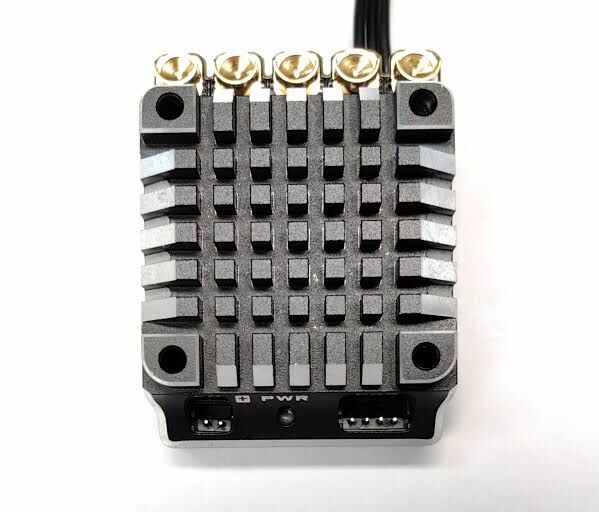

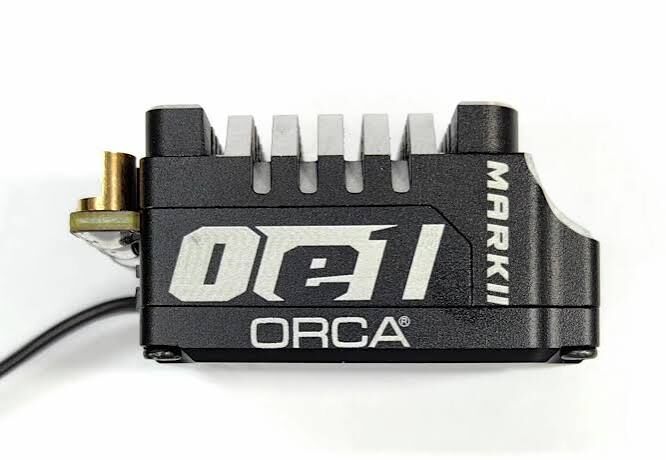

ORCA OE1 MKII Pro 160A Sensored Brushless ESC – ES24OE1MKII
SKU: ORC-ES24OE1MK11
The ORCA OE1 MKII Pro ESC is a premium competition electronic speed controller developed for high-performance 1/10 scale RC racing. Combining a powerful 32-bit processor with low-resistance FET technology, the OE1 MKII Pro delivers smooth throttle response, precise braking and the adjustability required by serious stock and modified-class racers.
Designed for sensored 540-size brushless motors, the OE1 MKII Pro supports motors down to 3.5 turns and provides a continuous current rating of 160A with a peak output of up to 760A. Its advanced electronics provide highly responsive power delivery while maintaining excellent efficiency and control.
Built-in capacitors help create a clean, compact installation without requiring a separate external capacitor bank. The ESC also features reverse-polarity protection for additional security when connecting the battery.
An adjustable 8A BEC with 6V and 7V output options provides dependable power for high-performance steering servos and modern radio equipment. Multiple performance parameters can be customised using the optional ORCA program card or ORCA Blucon wireless adaptor, allowing settings to be adjusted from a compatible smartphone.
Compact, lightweight and highly programmable, the ORCA OE1 MKII Pro is an excellent choice for competitive touring cars, buggies and other high-performance 1/10 scale racing applications.
The ORCA program card and Blucon Bluetooth adaptor are optional and sold separately.
Key Features
- Competition-grade 1/10 scale brushless ESC
- Powerful 32-bit processor
- Low-resistance FET technology
- Designed for sensored 540-size brushless motors
- Supports motors down to 3.5 turns
- 160A continuous current rating
- 760A peak current rating
- Smooth and precise throttle response
- Forward, brake and reverse capability
- Forward and brake factory configuration
- Multiple adjustable performance parameters
- Compatible with the optional ORCA program card
- Supports the optional ORCA Blucon wireless adaptor
- Built-in capacitor system
- Reverse-polarity protection
- Adjustable high-output 8A BEC
- Compact aluminium housing
- Suitable for stock and modified racing
Specifications
- Brand: ORCA
- Product: OE1 MKII Pro
- Part number: ES24OE1MKII
- Application: 1/10 scale competition RC vehicles
- ESC type: Sensored brushless
- Compatible motor: Sensored 540-size brushless motor
- Motor limit: 3.5T or higher
- Input voltage: DC 6–9V
- Battery compatibility: 2S LiPo or 2–3S LiFe
- Continuous current: 160A
- Peak current: 760A
- BEC output: 8A
- BEC voltage: Selectable 6V or 7V
- Operating modes: Forward/brake and forward/brake/reverse
- Processor: 32-bit
- Built-in capacitors: Yes
- Reverse-polarity protection: Yes
- Dimensions: 31 × 35 × 19.8mm
- Weight: 43.3g excluding wires
- Colour: Black
Suitable Applications
- 1/10 competition touring cars
- 1/10 2WD and 4WD racing buggies
- Stock-class racing
- Modified-class racing
- On-road and off-road competition vehicles
Package Contents
- 1 × ORCA OE1 MKII Pro Brushless ESC
Optional Accessories
- ORCA OE1 ESC program card
- ORCA Blucon Bluetooth programming adaptor
- Compatible sensor wire
- Cooling fan where required
| SKU | ORC-ES24OE1MK11 |
| Brand | ORCA |
