ORCA Modtreme 4 M4 8.5T Sensored Brushless Modified Motor – MO26MTM485T

The ORCA Modtreme 4 M4 8.5T Sensored Brushless Motor is a next-generation competition motor designed to deliver smooth power, excellent efficiency and the precise throttle control required for serious RC racing.

Developed for 1/10 scale touring cars and off-road racing vehicles, the Modtreme 4 uses a hand-wound stator and optimised 12.1mm rotor. Its sensored operation provides smooth startup and accurate power delivery throughout the RPM range, helping drivers maintain control through technical corners and low-grip sections.

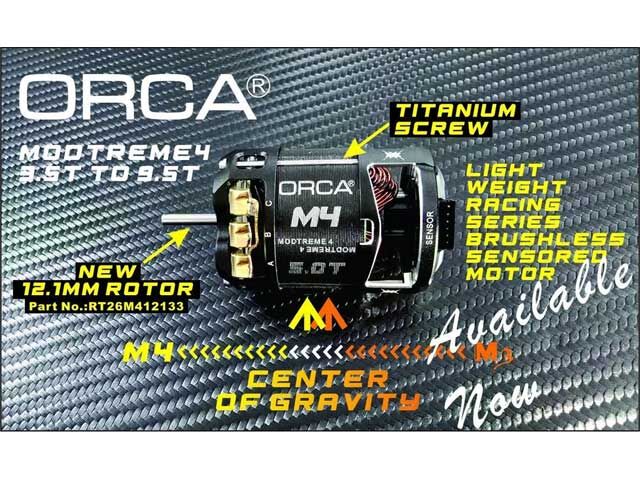

The redesigned motor housing provides improved cooling while reducing overall weight by approximately 3% compared with the previous generation. ORCA has repositioned the solder terminals further inward, moving the motor’s mass closer to the vehicle’s centreline. This improves chassis balance and allows faster, more responsive left-to-right transitions.

Factory-installed titanium motor screws reduce weight at the highest point of the motor while offering excellent strength and durability. Standard 540-size dimensions provide compatibility with a wide variety of competition 1/10 scale RC chassis.

The 8.5-turn winding provides an excellent combination of speed, torque and manageable power delivery. It is ideal for modified racing applications where smooth control, consistency and efficiency are essential.

Key Features

• High-performance 8.5T modified winding
• Sensored brushless operation
• Hand-wound competition stator
• Standard 540-size motor
• Optimised 12.1mm rotor
• Smooth and precise throttle response
• Strong acceleration with controllable power delivery
• Approximately 3% lighter than the previous generation
• Redesigned housing for improved cooling
• Inward-positioned solder terminals
• More centralised motor mass
• Improved chassis balance and cornering response
• Factory-installed titanium motor screws
• Suitable for competition on-road and off-road racing

Specifications

• Brand: ORCA
• Series: Modtreme 4 M4
• Part number: MO26MTM485T
• Motor type: Sensored brushless
• Motor class: Modified competition
• Turns: 8.5T
• Motor size: Standard 540
• Stator: Hand wound
• Rotor diameter: 12.1mm
• Standard rotor: RT26M412133
• Motor screws: Titanium
• Application: 1/10 scale competition RC vehicles

Suitable Applications

• 1/10 modified touring cars
• 1/10 competition pan cars
• 1/10 2WD racing buggies
• 1/10 4WD racing buggies
• Carpet racing
• Asphalt racing
• Competition off-road racing

Package Contents

• 1 × ORCA Modtreme 4 M4 8.5T Sensored Brushless Motor

Required to Complete

• Sensored brushless ESC rated for an 8.5T motor
• Suitable competition battery
• Compatible sensor cable
• Motor wires and connectors
• Suitable pinion gear

Correct gearing will depend on the vehicle, track and operating conditions. Always monitor motor and ESC temperatures during initial setup.
