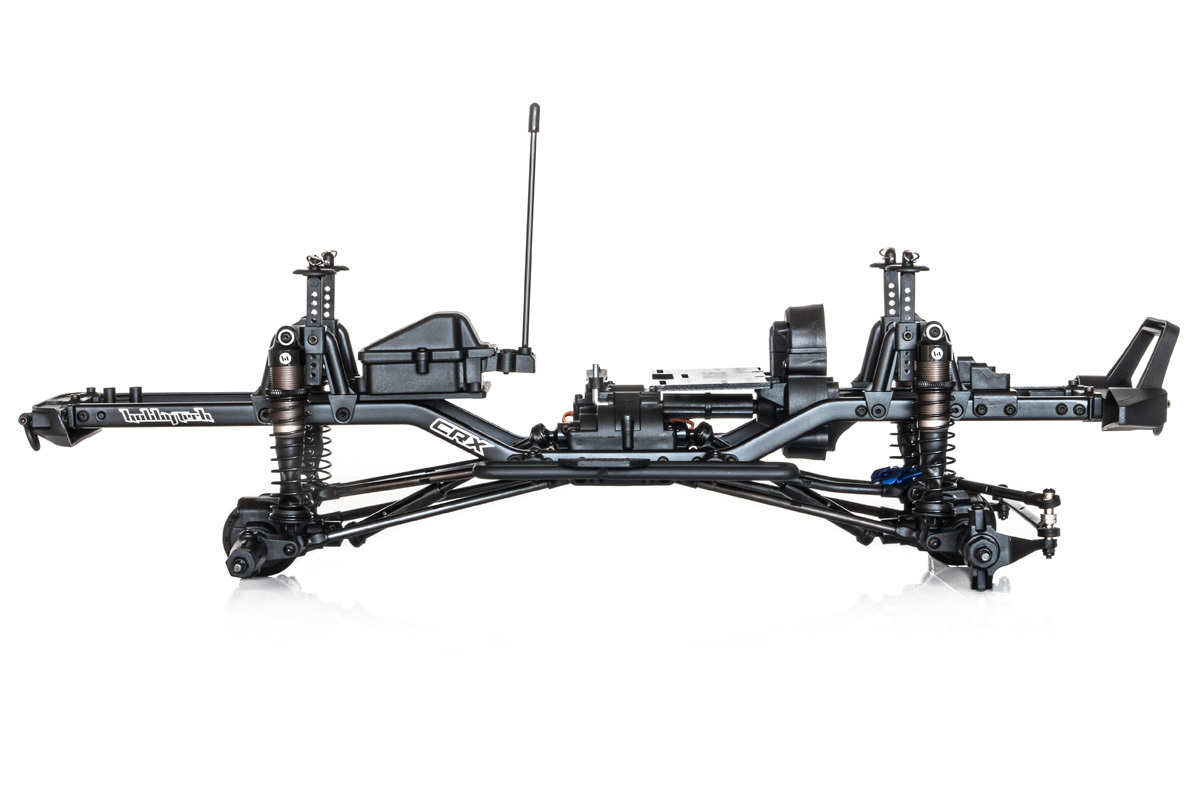

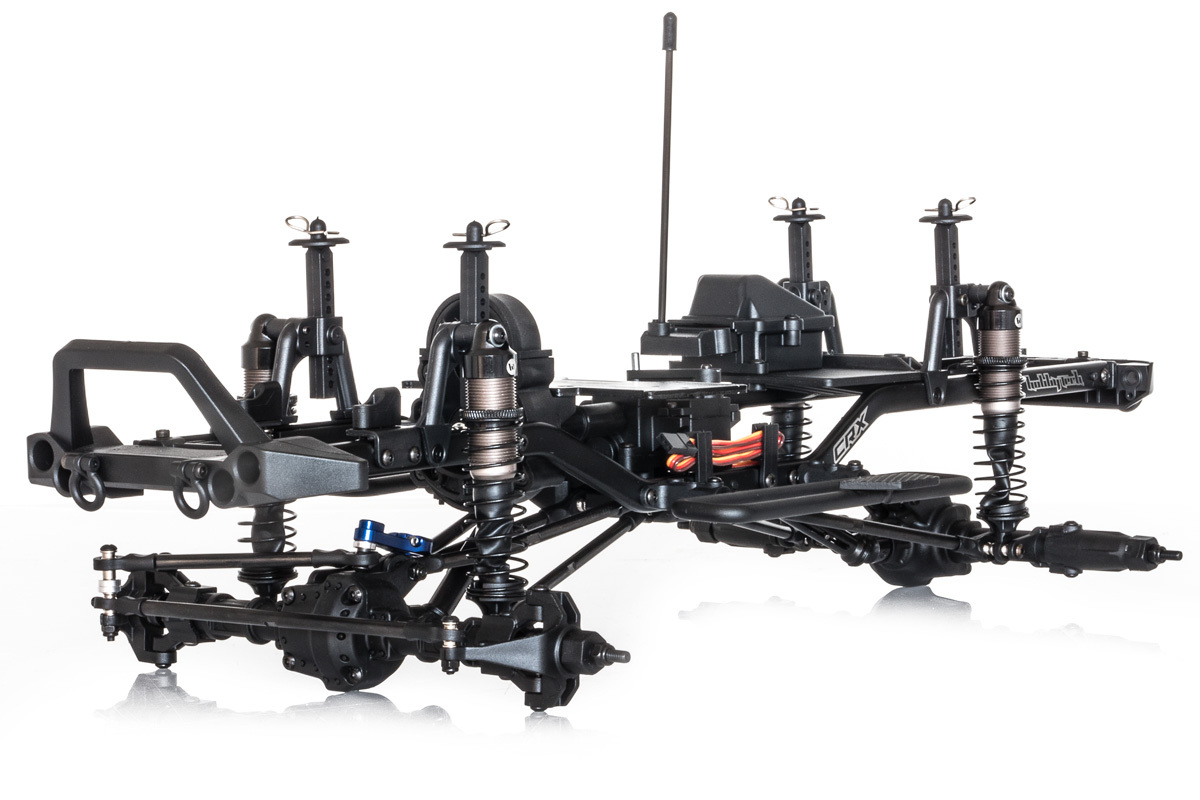

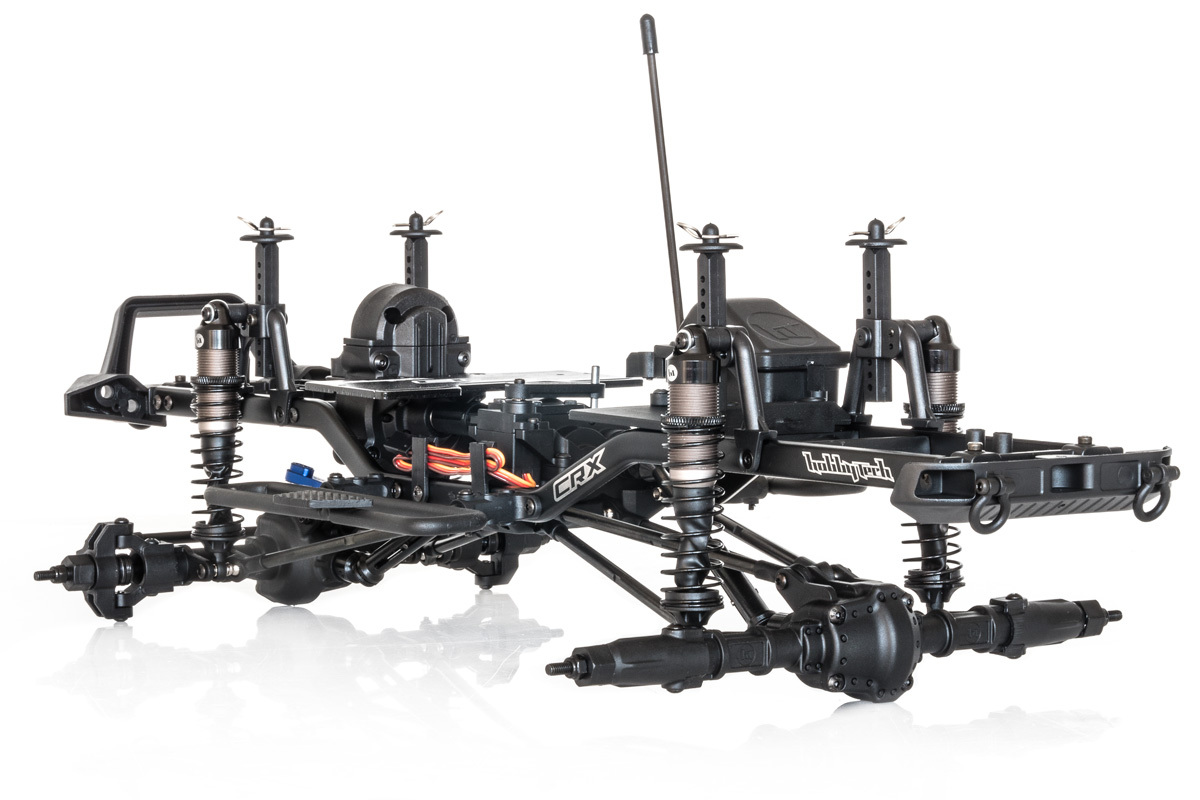

HOBBYTECH CRX BUILDER CRAWLER KIT V1 - HT-CRX-V1

SKU: HT-CRX-V1


HOBBYTECH CRX BUILDER CRAWLER KIT V1 - HT-CRX-V1

Features:

 • Front and rear rigid bridges

• Adjustable all-aluminum shock absorbers
• Front and central articulated steel gimbal
• Quick access system to transmission
• Suspension bridge on 4 articulated metal arms
• CMS type servo mounting on frame to avoid angle variations
• 2-speed transmission (slow and fast)
• 2 speed selection system with a servo
• 1.5mm C-spar frame for even more rigidity
• Super realistic steel step (weight optimization)
• Advanced position of the motor and the battery to improve the crossing
• Fully assembled with ball bearings
• Watertight receiver box with specific seal
• Fixing system for all types of batteries

Dimensions
• Length: 525mm
• Width (front / rear): 253mm
• Height: 245mm
• Ground clearance: 40mm
• Wheelbase: 324mm
• Weight: 2450g (without battery)
• Shock absorber length (front / rear): 95mm
• Rims (front / AR): 48x25mm
• Tires (AV / AR): 121x45mm
• Hexagon of wheels: 12mm
• Chassis spec: Double frame 1.5mm thick steel spars
• Transmission: Gearbox (slow and fast) with selection servo
• Type of pinion: 46dp

SKU HT-CRX-V1
Barcode # 3700624539364
Brand HOBBYTECH
