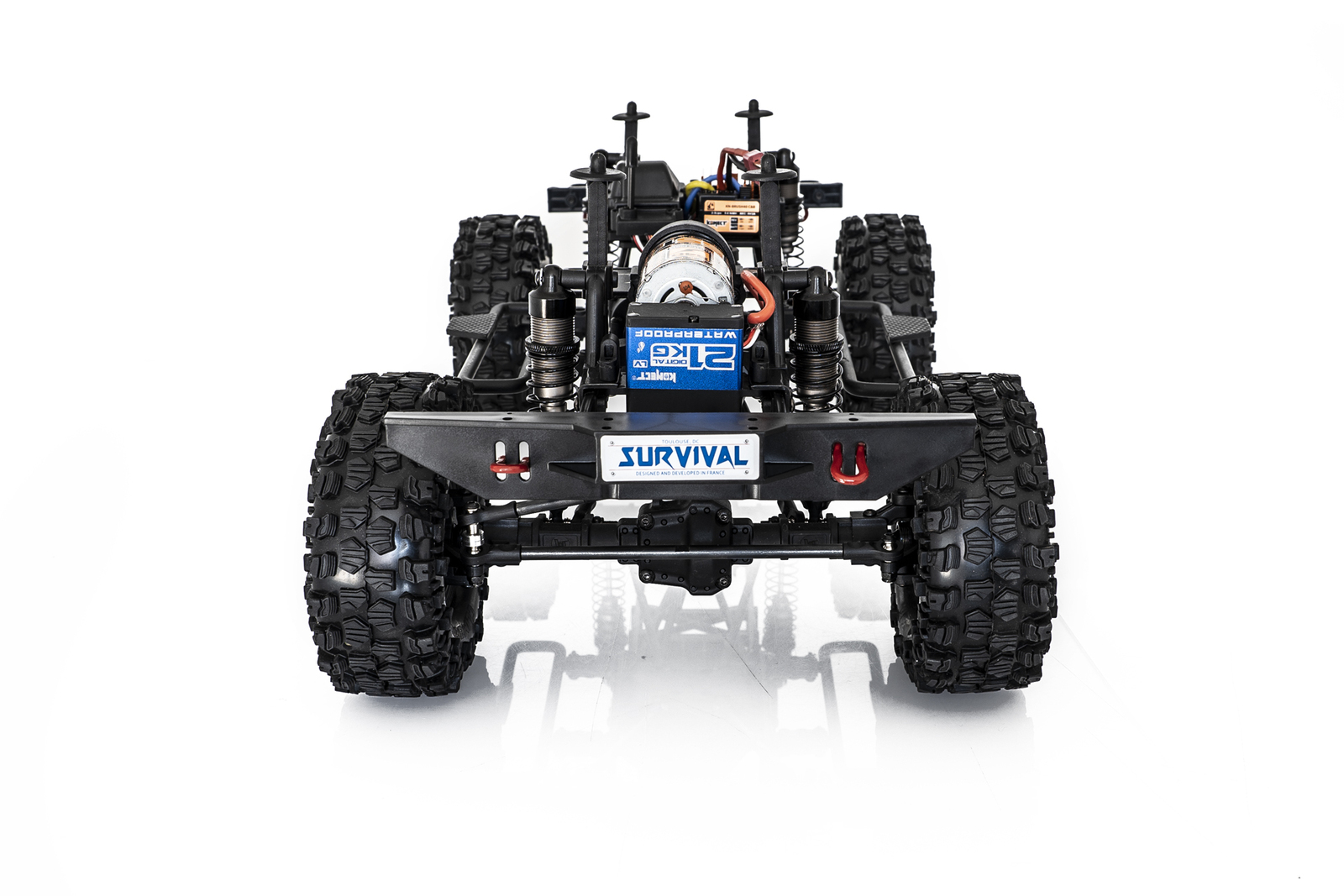

Hobbytech Crawler Crx Survival Rtr Version - Ht-Crx.Rtr

Hobbytech crawler crx rtr version - ht-crx. Rtr

features:
konect waterproof special crawler esc
 kt3s radio + 3 konect channels
2-speed transmission system with servo included
quick access transmission system
motor size 54o 55t high power
1. 9climber 121 / 45mm wheels on black rims
servo 21kg konect waterproof steering
battery mount accept all different batterys
rigid front and rear axles
adjustable all-aluminum shock absorbers
articulated front and central gimbals in steel
quick transmission access system
suspension bridge on 4 articulated metal arms
cms type servo mounting on chassis to avoid variations in angles
2-speed transmission (slow and fast)
2-speed selection system with a servo
1. 5mm c-shaped chassis for even more rigidity
super realistic steel foot step (weight optimization)
advanced position of the engine and of the battery to improve crossing
fully assembled with ball bearings
sealed receiver box with specific seal
1. 9climber 121 / 45mm wheels on black rims
survival body painted with allœ scale-lookaccessories
bumper realistic equipped with shackles
fixing system for all types of batteries

specs:
length: 525mm
width (av / ar): 253mm
height: 245mm
ground clearance: 40mm
wheelbase: 324mm
weight: 2450g (without battery)
shock absorber length (av / ar): 95mm
rims (av / ar): 48x25mm
tires ( fr / ar): 121x45mm
hexagon wheels: 12mm
chassis spec: chassis double spars
1. 5mm thick steel
transmission: gearbox (slow and fast) with selection servo
pinion type: 46dp

radio specs:

• servo direction
• reversal atv potentiometer (dual rate) on channel 1
• trim potentiometers
• on channels 1 and 2 electronic limit switch adjustment on channels 1 and 2
• weight: 300g
• kt2s + 2 way receiver
• dimensions: 38 — 23. 5x14mm
• weight: 8g
