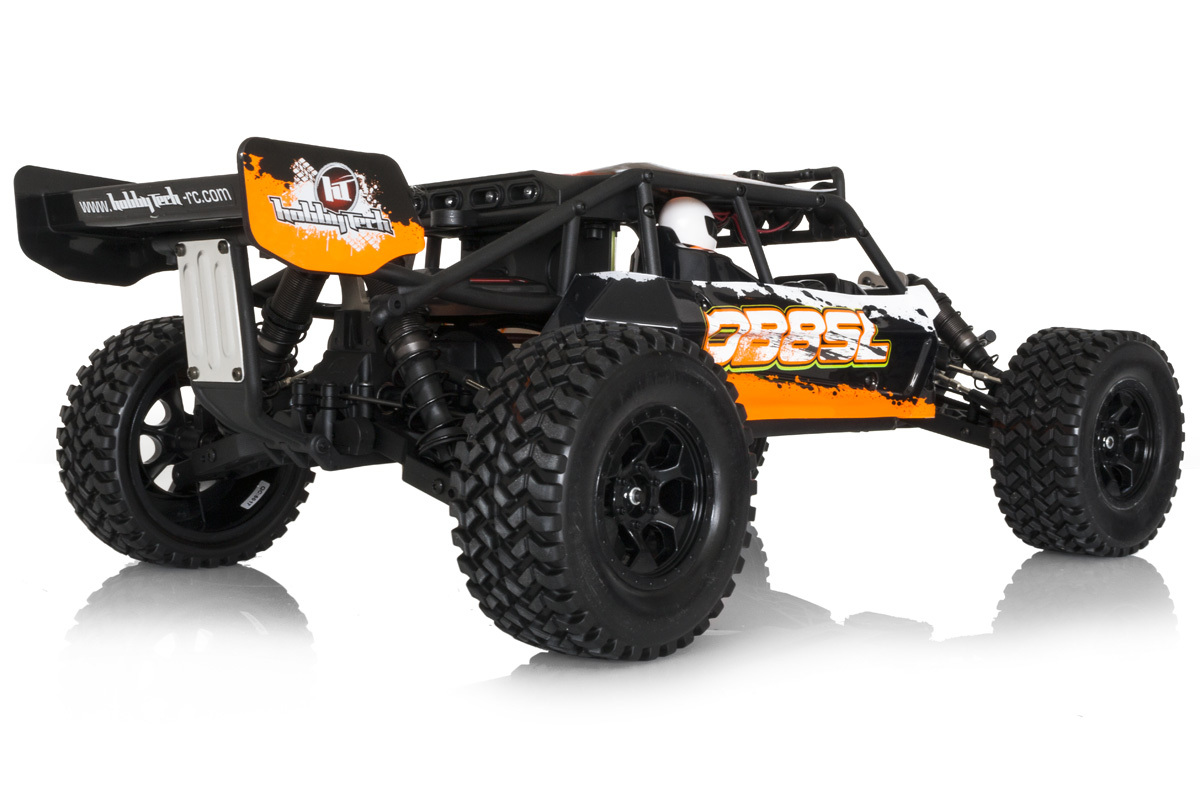

HOBBYTECH 1/8 RTR Orange Desert Buggy Racer Type SL - HT-SL.DB8.OR

SKU: HT-SL.DB8.OR


HOBBYTECH 1/8 RTR Orange Desert Buggy type SL - HT-SL.DB8.OR

The DB8SL will take you to the terrain you had always dreamed of, this vehicle is a monster of power capable of crossing most obstacles day and night thanks to its LED kit included.

Features:

  • New & reinforced swingarms / wishbones
  • New rear mud flaps to protect the axles & dampers
  • Oil "Race" shock absorber made of aluminum
  • Waterproof receiver box
  • Despite the scale body and roll cage, changing the battery is lightning fast
  • Powerful 17kg servo with metal gear
  • 80Amp waterproof brushless controller by HobbyWing for up to 3S LiPos
  • Powerful 2750kv brushless motor with 5mm axle by HobbyWing
  • Ultra stable central aluminum drive shaft "Anti Flex"
  • Steel sprocket with 30 teeth and 32dpi
  • High current resistant Deans / T-plug
  • 900mAH charger with balancer function for 2-3S Lipos
  • Front & rear differential made of metal
  • Middle differential with metal gear
  • CNC machined 1cm ultra thick motor mount, adj and secured with 3 screws
  • Aluminum CNC machined Ackermann plate
  • CNC machined aluminum front & rear shock tower
  • Damper bridges front and rear made of aluminum
  • Shock absorbers with protective boats for piston rods
  • Stabilizers on the front and rear axles
  • Fully ball bearing
  • Right / left threaded rods on the compl. suspension
  • CCD universal joint drive shafts in front
  • 12mm aluminum wheel carrier
  • Performance dirt cross devil tires
  • LED headlights on the roof
  • New 2.4GHz Konect KT2S + remote control incl programmable EPA function
  • Aluminum front & rear rammer fenders / skid plates
  • Multiple setup options thanks to numerous suspension points
  • Lacquered & glued Lexan Cap-Forwad body by BittyDesign Made in Italy
  • Operating instructions in German / English / French

Specs:

  • Height / Max. : 175 mm
  • Wheelbase / Wheelbase: 322 mm
  • Front width / Track (front): 306 mm
  • Rear width / Track (rear): 310 mm
  • Front ride height / Front ground clearance: 54 mm
  • Rear ride height / Rear ground clearance: 56 mm
  • Weight / Total weight: 2330 gr

Radio Specs

  • Servo direction
  • reversal ATV potentiometer (dual rate) on channel 1
  • TRIM potentiometers
  • on channels 1 and 2 Electronic limit switch adjustment on channels 1 and 2
  • Weight: 300g
  • KT2S + 2 Way Receiver
  • Dimensions: 38 × 23.5x14mm
  • Weight: 8g

ESC Specs:

  • Special for SL type cars Short Course / Truck / Monster truck
  • Compatible Sensorless brushless motor
  • Power 80A continuous
  • Power 520A peak
  • Resistance 0.0010 Ω
  • Motor limit 5000 Kv in 2S and 3000 Kv in 3S
  • Supply 6 to 9 elements in nimh
  • Supply 2 to 3S in Lipo (11.1v)
  • BEC: 6v-7.4v / 3A
  • Dimensions: 49 × 39.5 × 34.7mm
  • Weight: 105g Programmable
  • Thermal Protection
  • via external card (not supplied)
  • DEAN connector
  • Manufactured by HOBBYWING

Motor Specs:

  • Compatible with 10.8V Ni-MH and 2-3S Li-Po
  • 2750KV
  • Dimensions: Φ = 36mm - L = 60mm
  • Axis: Φ = 5mm - L = 18.5mm
  • Resistance: 0.0083 Ω
  • Poles: 4
  • Amp: 2.8A
  • Weight: 247 g

**Requires Battery and Charger



  • Height / Max. : 175 mm
  • Wheelbase / Wheelbase: 322 mm
  • Front width / Track (front): 306 mm
  • Rear width / Track (rear): 310 mm
  • Front ride height / Front ground clearance: 54 mm
  • Rear ride height / Rear ground clearance: 56 mm
  • Weight / Total weight: 2330 gr

Radio Specs

  • Servo direction
  • reversal ATV potentiometer (dual rate) on channel 1
  • TRIM potentiometers
  • on channels 1 and 2 Electronic limit switch adjustment on channels 1 and 2
  • Weight: 300g
  • KT2S + 2 Way Receiver
  • Dimensions: 38 × 23.5x14mm
  • Weight: 8g

ESC Specs:

  • Special for SL type cars Short Course / Truck / Monster truck
  • Compatible Sensorless brushless motor
  • Power 80A continuous
  • Power 520A peak
  • Resistance 0.0010 Ω
  • Motor limit 5000 Kv in 2S and 3000 Kv in 3S
  • Supply 6 to 9 elements in nimh
  • Supply 2 to 3S in Lipo (11.1v)
  • BEC: 6v-7.4v / 3A
  • Dimensions: 49 × 39.5 × 34.7mm
  • Weight: 105g Programmable
  • Thermal Protection
  • via external card (not supplied)
  • DEAN connector
  • Manufactured by HOBBYWING

Motor Specs:

  • Compatible with 10.8V Ni-MH and 2-3S Li-Po
  • 2750KV
  • Dimensions: Φ = 36mm - L = 60mm
  • Axis: Φ = 5mm - L = 18.5mm
  • Resistance: 0.0083 Ω
  • Poles: 4
  • Amp: 2.8A
  • Weight: 247 g



SKU HT-SL.DB8.OR
Barcode # 3700624533317
Brand HOBBYTECH
