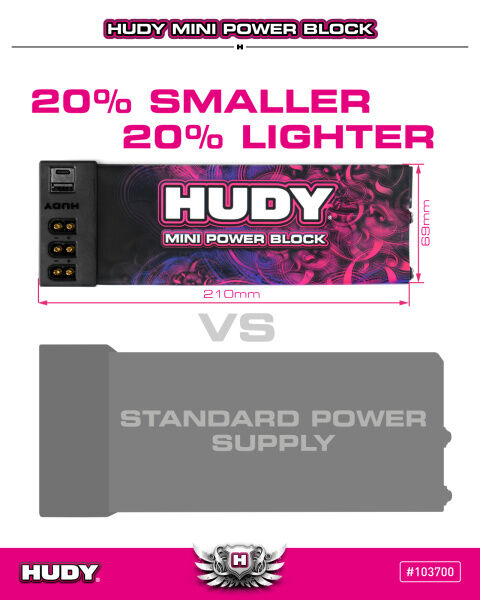

HUDY Mini Power Block 800W / 67A Power Supply AU Plug - 103700-AU

The HUDY 103700-AU Mini Power Block is a compact, high-performance 800W / 67A power supply designed for demanding RC charging and pit applications.

Despite its small and lightweight design, the Mini Power Block delivers a powerful and stable 12V DC output, making it ideal for powering high-performance battery chargers and other RC equipment.

This version is supplied with an Australian AU mains plug.

Powerful 800W / 67A Output

The HUDY Mini Power Block delivers up to 800W total output power and 67A, providing plenty of capacity for high-current charging applications.

All output connections share the power supply's total 800W capacity, allowing multiple devices to be connected at the same time.

Connect Up to 7 Devices

The power supply provides 7 output connections:

• 3 × XT60 outputs
• 2 × 4mm bullet outputs
• 1 × USB-C output
• 1 × USB-A output

This makes it easy to power multiple chargers and accessories from a single compact power supply.

High-Current 12V Outputs

Both the XT60 and 4mm bullet outputs provide 12V DC power.

Each XT60 and 4mm bullet output supports up to 30A continuous current, subject to the overall 800W capacity of the power supply.

USB-A & USB-C Charging

The integrated USB connections are ideal for charging phones, tablets and other compatible pit equipment.

USB-C PD3.0

• 5V / 9V @ 3A
• 12V @ 2.5A
• Maximum 30W

USB-A QC2.0

• 5V / 9V @ 3A
• 12V @ 2.5A
• Maximum 30W

Key Features

• Genuine HUDY racing equipment
• Product Code: 103700-AU
• Australian AU plug version
• Maximum 800W output
• Maximum 67A output
• Stable 12V DC power
• Connect up to 7 devices simultaneously
• 3 × XT60 output ports
• 2 × 4mm bullet output ports
• 1 × USB-C PD3.0 port
• 1 × USB-A QC2.0 port
• Up to 30A from individual XT60 outputs
• Up to 30A from individual 4mm outputs
• Up to 30W USB-C output
• Up to 30W USB-A output
• Built-in noise filter
• Integrated cooling fan
• Aluminium and steel case construction
• Compact and lightweight design

Specifications

• Brand: HUDY
• Product: Mini Power Block
• Product Code: 103700-AU
• Maximum Power: 800W
• Maximum Current: 67A
• Main Output Voltage: 12V DC
• XT60 Outputs: 3
• XT60 Maximum Continuous Current: 30A each
• 4mm Bullet Outputs: 2 sets
• 4mm Maximum Continuous Current: 30A each
• USB-C: PD3.0, up to 30W
• USB-A: QC2.0, up to 30W
• Cooling: IC-Controlled Fan
• Construction: Aluminium & Steel
• Mains Plug: Australian (AU)

What's Included

• HUDY 103700-AU Mini Power Block
• Integrated cooling system

Compact Power for the RC Pit

The HUDY 103700-AU Mini Power Block is an excellent choice for racers who need a powerful but compact power supply for their charging station.

With 800W / 67A performance, five dedicated 12V outputs plus USB-A and USB-C, it provides a clean and convenient way to power multiple devices from a single unit.
