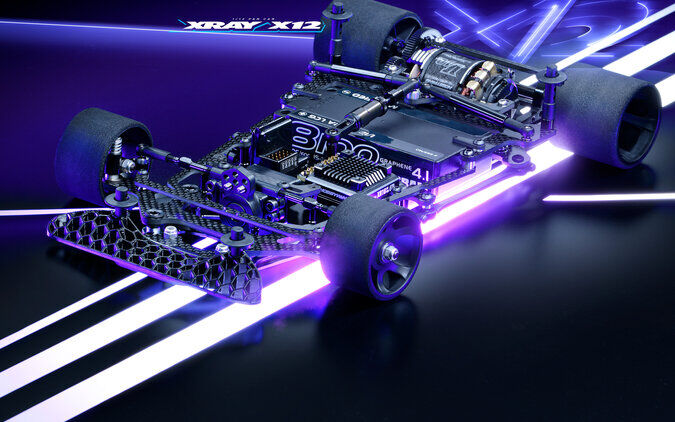

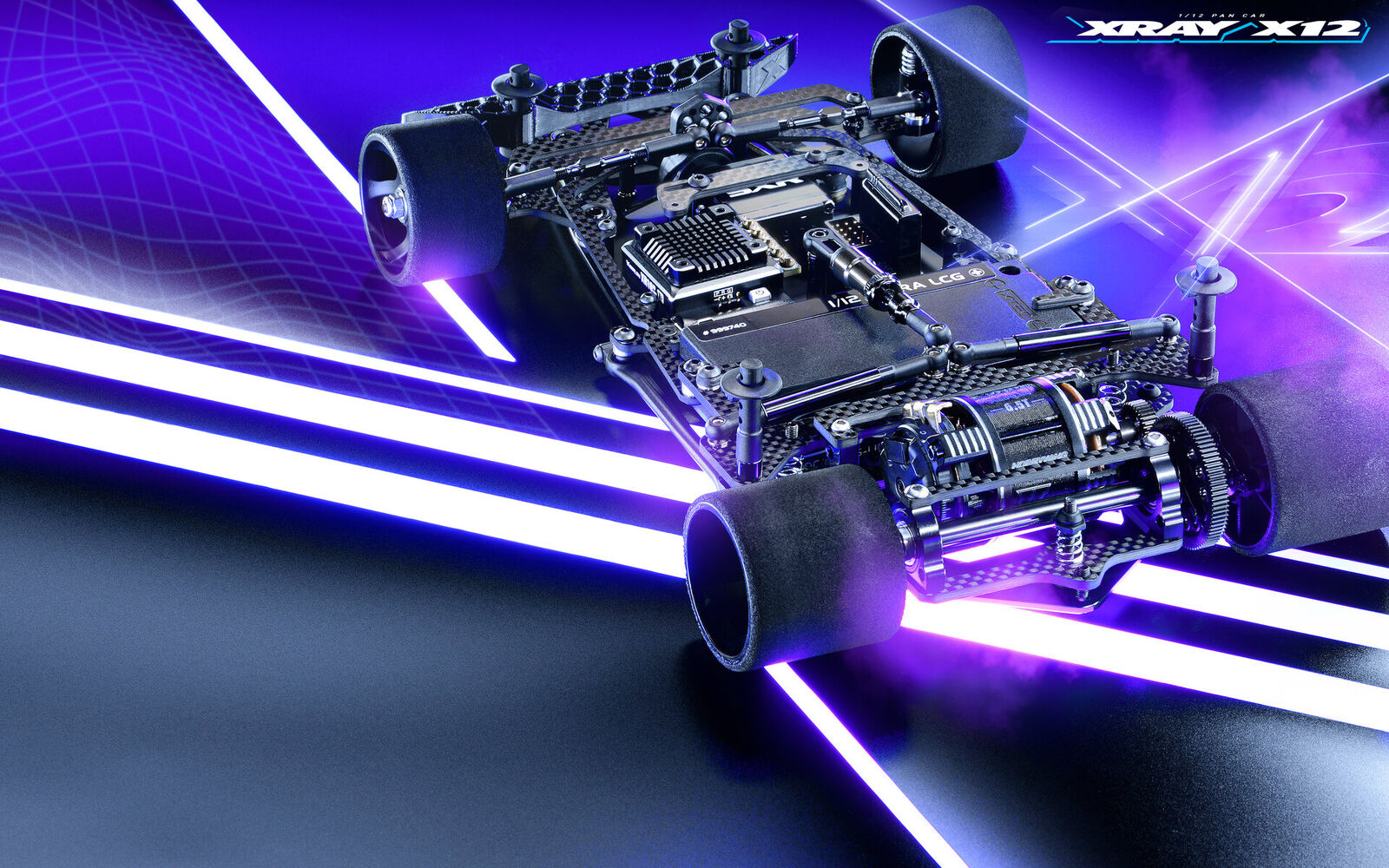

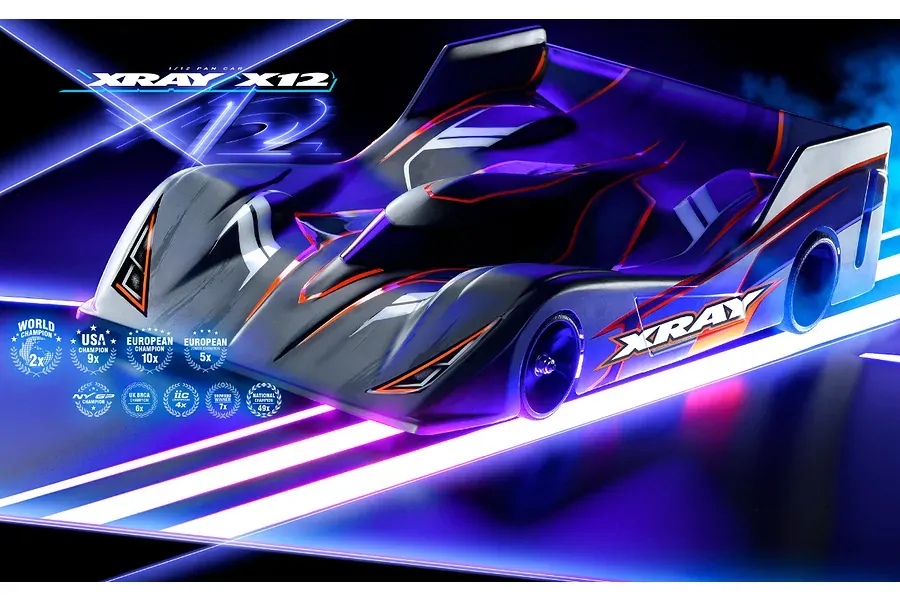

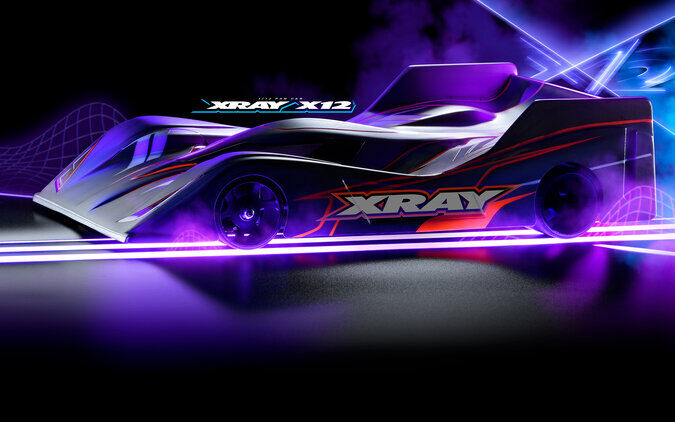

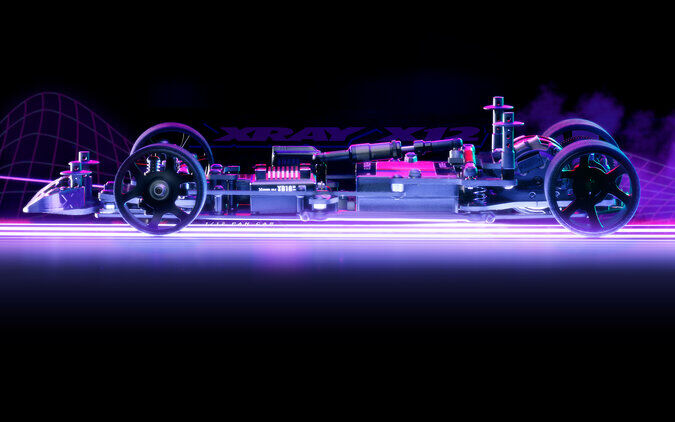

XRAY X12'26 - 1/12 PAN CAR

XRAY X12'26 - 1/12 PAN CAR

Description

The XRAY X12'26 represents a calculated step forward in 1/12 scale racing technology, offering a collection of specific refinements for the competitive driver. The core of the 2026 version is its redesigned aluminium chassis, which has been altered to lessen flex at the rear. This change results in a car with more predictable stability and better traction when exiting corners, allowing for earlier power application. The car's handling is further sharpened by adjustments to the suspension geometry. A new pod and side link mounting system provides multiple positions to ensure the suspension moves smoothly without binding as it compresses, keeping the tyres in consistent contact with the track surface for a more connected feel.

Every update on the X12'26 is designed to address the fine details that separate finishing positions in high-level racing. The front end now features wider lower arms and a thinner carbon brace, a combination that makes the car's steering response more forgiving while increasing mechanical grip. New aluminium pivot holders allow for a lower roll-centre, and the addition of a floating servo mount provides another tool for tuning chassis flex and feel. These individual adjustments work together to create a car that is not only quick, but also more consistent and easier to drive at the limit, giving the driver the confidence needed to perform.

Features

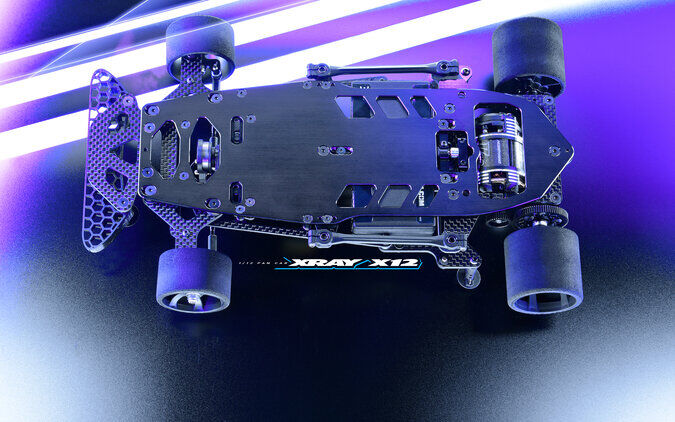

• 2.0mm Swiss 7075 T6 aluminium chassis with less rear flex

• New pod and side link plates with 3 alignment positions to reduce bind

• Aluminium pivot holders allow for a much lower roll-centre setting

• Dual servo mounting options including a new floating servo holder

• Wider front lower arms (+1mm each side) for better drivability

• Thinner 1.6mm carbon front brace enhances handling and mechanical grip

• Redesigned front carbon bumper for increased durability

• Centre dampener with improved sealing to prevent oil leakage

• Tweak-Free Front Suspension and Rear POD System

• Lightweight hollow steel rear axle for minimal rotating mass

• XRAY Snap Lock™ Bushings for weight savings and easy maintenance

• Fully adjustable geometry for camber, caster, toe, and more

• HUDY Spring Steel™ high-tolerance pivot balls

• Lightweight rear bulkheads with a cooling fan mounting point

• Precision-moulded spur gears for quiet and dependable operation

• Genuine XRAY Product

Specifications

• Length: N/A

• Width: N/A

• Height: N/A

• Wheelbase: Adjustable

• Weight: N/A

• Chassis: 2.0mm Swiss 7075 T6 Aluminium

• Suspension: Kingpin Front Suspension with Tweak-Free System

• Drivetrain: 2WD Rear-Wheel-Drive Direct Drive

• Motor: N/A

• ESC: N/A

Included Items

• 1x X12'26 Chassis Kit

Required Items

• 2-Channel Radio System (Transmitter & Receiver)

• Low-Profile Steering Servo

• 1/12 Scale Motor & ESC

• 1S LiPo Battery & Compatible Charger

• 1/12 Scale Wheels & Tyres

• 1/12 Pan Car Body Shell & Polycarbonate Paint

• Pinion Gear

• Assembly Tools

• Silicone Oils & Grease

Note

• This is a competition-level assembly kit that requires full assembly.

• All electronics, wheels, tyres, and body must be purchased separately.
