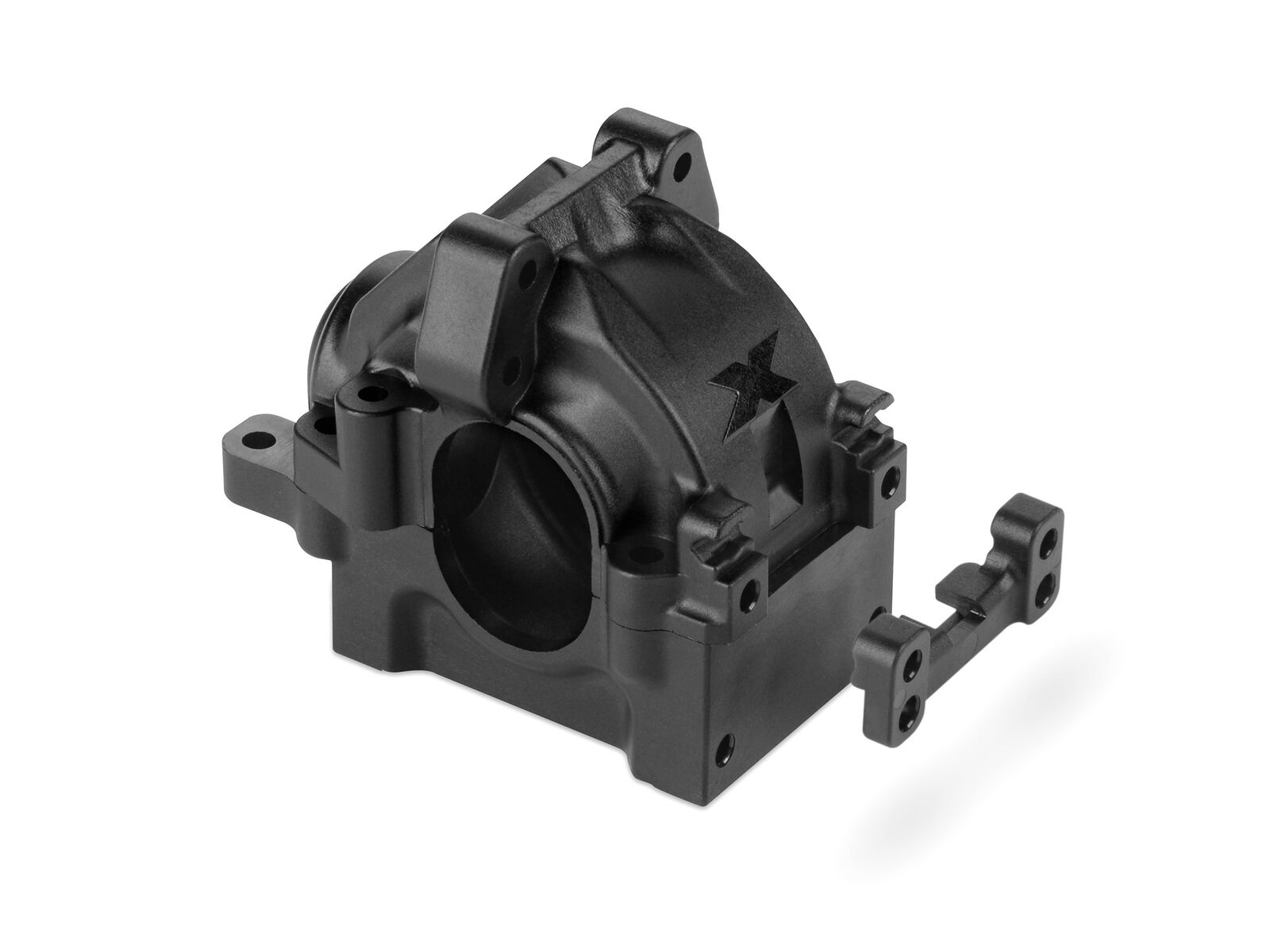

XRAY DIFF BULKHEAD HORIZONTAL SPLIT DESIGN FOR COLLAR - F/R - SET

SKU: XY362006-C

The new front & rear gearbox front cases were modified with provisions for the anti-
roll bar centering collars. The new anti-roll bar collars minimize unwanted movement
and improve the precision of the anti-roll bar functionality.

Front and rear bulkheads feature a horizontal split design (HS) to retain easy diff
access while adding the valuable diff height adjustment. The unique design of the
bulkheads uses an inline bushing to alter the alignment and height of the bevel drive
gear. In addition to accommodating the diff height adjustments, it also allows the front
central drive shaft to operate with a reduced angle for less friction and wear on the
CV joint components and improved driveline efficiency.

The XB4 bulkheads allow fast and easy differential access for setup changes or
servicing by removing only 4 screws from the upper gear box cover while the lower
section remains mounted to the chassis. This super-fast diff access is featured on
both front and rear gearboxes.

The super-strong, narrow bulkheads provide the needed clearance for the
redesigned suspension holders with increased set-up range possibilities.

Fits: XB4
