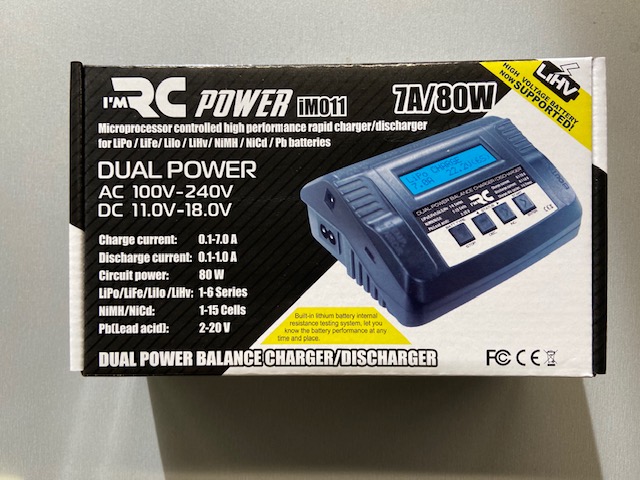

iM R/C 80W Charger

On: 8 May 2020

Check out the new iM R/C 80W Charger, packed full of features!

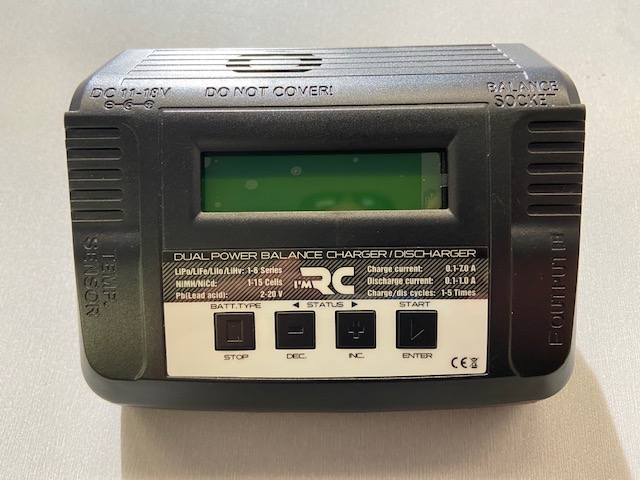

The iM R/C C607D charger is a simple yet powerful dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries. It is packed with features that exceeds many higher cost units. Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

  • Capacity Limit
  • Maximum safety
  • Temperature monitoring
  • Input power monitoring
  • Easy to program buttons
  • 5 battery memory
  • Individual cell monitoring
  • 2-Line Back lit LCD display
  • Built in Balancer to 6S packs
  • Cycle charging/discharging
  • Includes "FAST" & "STORAGE" Li-xx programs

Product Details

  • Output 80W
  • Discharge 5W
  • Balancing current 300mAh/cell
  • Operating input voltage : 11 - 18V DC or 100-240V AC
  • Ni-Cad / Ni-MH : 1 - 15 Cells
  • Li-Ion / Li-Po / Li-Fe / Li-Hv : 1 - 6 Series
  • Charge current : 0.1 - 7.0A
  • Discharging current: 0.1 - 1.0A
  • PB / Lead Acid : 2 - 20V
  • Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH connectors)
  • No. of Cycles : Up to 5 Cycles
  • Weight : 400g
  • Dimensions : 136mm x 127mm x 56mm

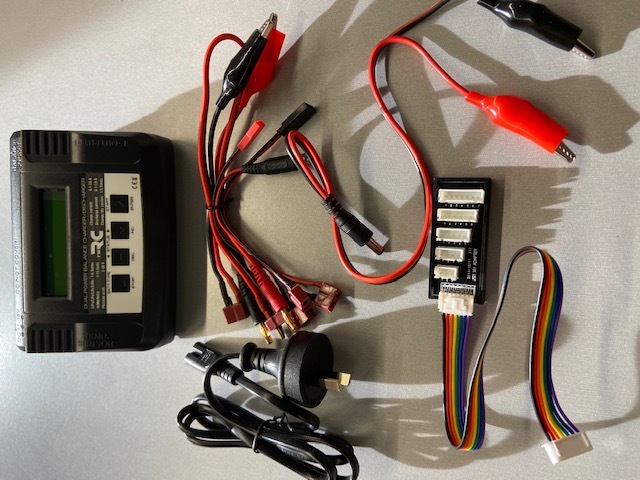

Includes
1 x Charger
1 x 4mm banana connectors to Dean connector cable
1 x Mains "kettle" lead with AU plug
1 x Manual

Various Charger Leads
